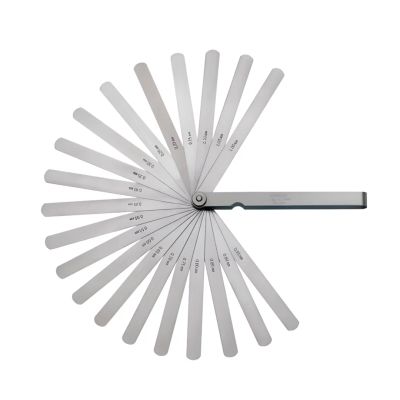

This Mitutoyo thickness gage has straight blades with 13mm width. Each leaf is marked with thickness and each leaf can be detached.
Features
-
Metric thickness gages are available with tapered leaves.
-
Each leaf is marked with its thickness.
-
Each leaf is detachable if necessary.
Specifications
-
Range: 0.05mm – 1mm (28 Leaves)
-
Blade Type: Straight blade, 13mm width
-
Blade Length: 150mm
-
Leaf Composition: 0.05-0.15mm by 0.01mm, 0.2-1mm by 0.05mm
-
Accuracy of Leaf Thickness:
-
0.01mm to less than 0.06mm = +/-0.003mm
-
0.06mm to less than 0.10mm = +/-0.004mm
-
0.10mm to less than 0.35mm = +/-0.005mm
-
0.35mm to less than 0.65mm = +/-0.008mm
-
0.65mm to less than 3.0mm = +/-0.01mm
-
