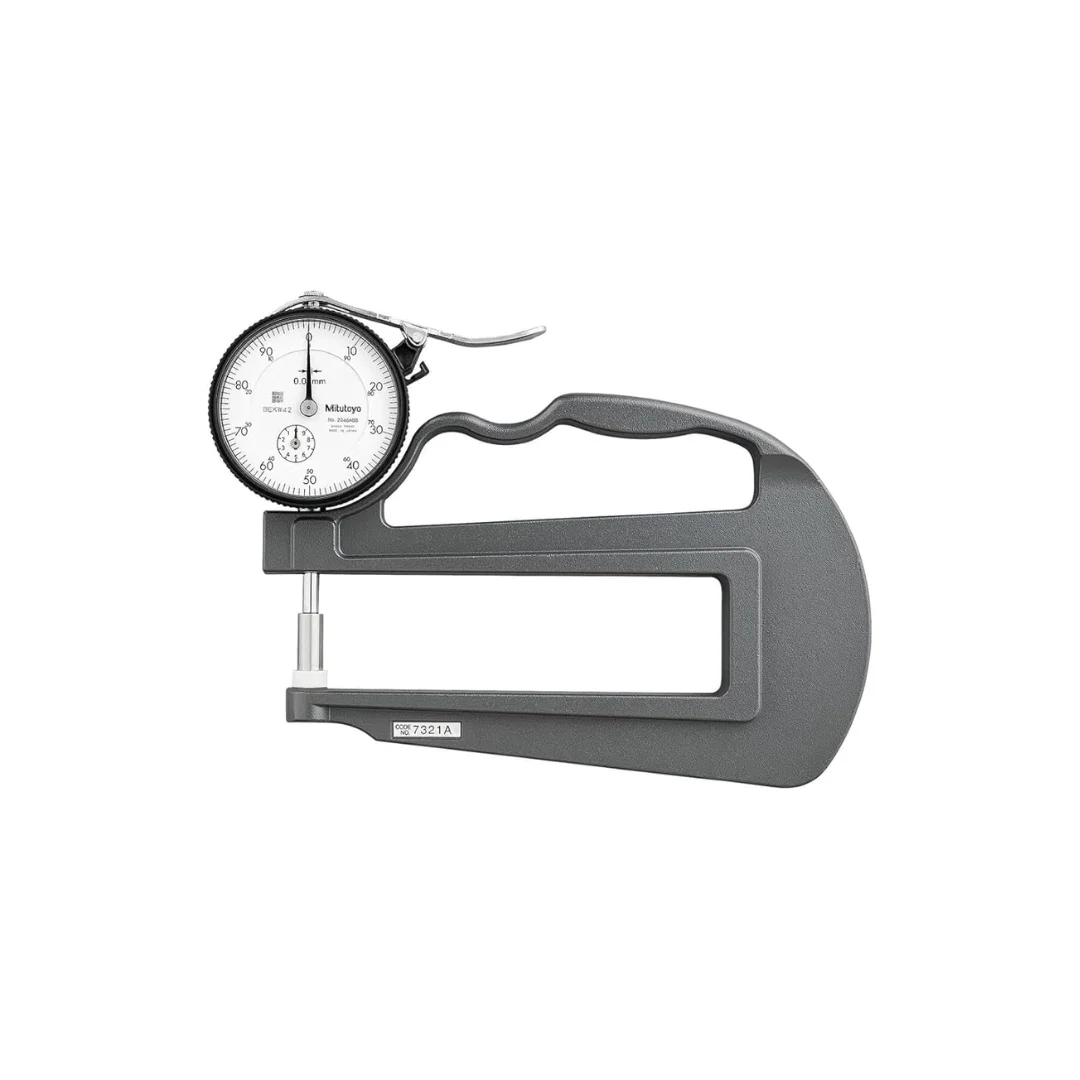

Designed for quick and efficient measurement of small dimensions, this instrument is ideal for paper, film, wire, sheet metal, and similar materials. The ergonomic grip handle, thumb trigger, and spring-loaded spindle make operation easy and repeatable.
Features
• Quick and efficient inspection: Convenient grip handle, thumb trigger, and spring-loaded spindle for smooth operation
• Wide application range: Supports various types of measuring faces (on spindle and anvil)
• Multiple models available: Covers a wide range of material thicknesses and applications
Specifications
• SKU: 7321
• Measurement Range: 0–10 mm
• Accuracy: ±15 µm
• Graduation: 0.01 mm
• Measuring Force: ≤1.4 N
• Stem Diameter: 8 mm
• Remarks: Deep throat, ceramic spindle and anvil
