NEWVAL FIG CV305 CAST IRON TWIN DOOR CHECK VALVE
SKU:
6" NEWVAL FIG CV305 CAST IRON TWIN DOOR CHECK VALVE
Brand: Newval
Category: Process & Control › Valves › Check Valve
Application: Wafer body fits between FF or RF flanges Upper and lower PRFE thrust washers Resilient Buna-N or EPDM seat Dual Plate Valves give maximum stren...
RM400.00
Price range: RM119.00 - RM993.00
In Stock
Size
Quantity
Max: 10Description
Application:
- Wafer body fits between FF or RF flanges
- Upper and lower PRFE thrust washers
- Resilient Buna-N or EPDM seat
- Dual Plate Valves give maximum strength with minimum opening time
- Torsion springs assist valve closure, preventing flow reversal
- Thrust washers reduce friction and wear of valve plate hinges

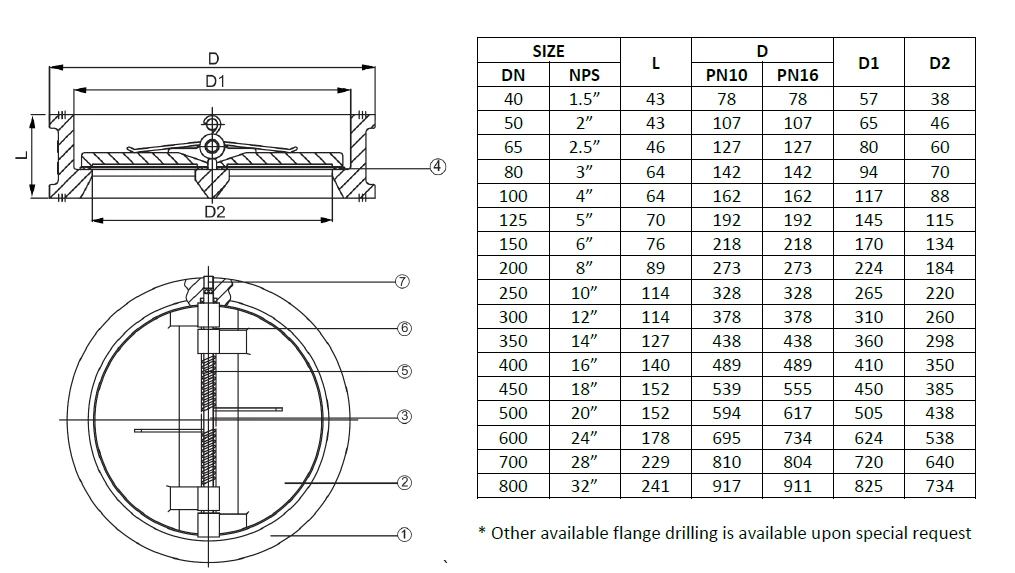

Technical Data:
- Size Range: 1-1/2”~32” (DN40~DN800)
- Pressure Rating: PN10/16

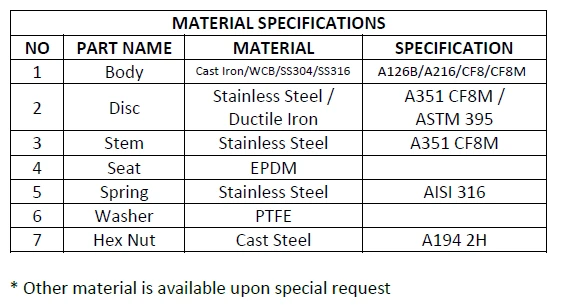

- Body Material: Cast Iron
- Face to Face: DIN3202-K3
- Flange Drilling: ANSI B16.1 Class125, EN1092-PN10 / PN16
- Inspection and Test: API598
Additional Details
Additional Information
Length
76 mm
Width
218 mm
Height
218 mm
Weight
0 kg
Specifications
No Specifications Available
Technical specifications have not been added yet.
Application:
- Wafer body fits between FF or RF flanges
- Upper and lower PRFE thrust washers
- Resilient Buna-N or EPDM seat
- Dual Plate Valves give maximum strength with minimum opening time
- Torsion springs assist valve closure, preventing flow reversal
- Thrust washers reduce friction and wear of valve plate hinges
Technical Data:
- Size Range: 1-1/2”~32” (DN40~DN800)
- Pressure Rating: PN10/16
- Body Material: Cast Iron
- Face to Face: DIN3202-K3
- Flange Drilling: ANSI B16.1 Class125, EN1092-PN10 / PN16
- Inspection and Test: API598
