Newval SG101 Double Sight Glass Flanged End
SKU:
2"Newval Flanged End Sight Glass SG101
Brand: Newval
Category: Process & Control › Valves › Sight Glass
Specification: Size Range: 1/2”~8” (DN15~DN200) Pressure Rating: 7 Bar Max Temperature Range: Up to 200°C Body Material: Carbon Steel, S...
Contact us for pricing
This product requires a custom quote
In Stock
Size
Quantity
Max: 10Description

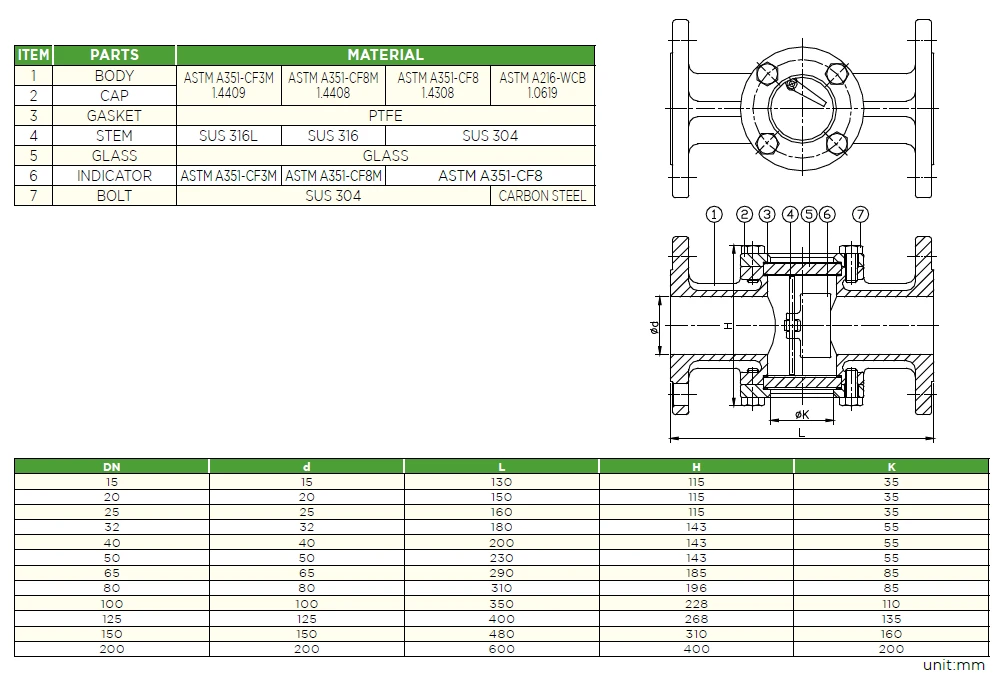

Specification:
- Size Range: 1/2”~8” (DN15~DN200)
- Pressure Rating: 7 Bar Max
- Temperature Range: Up to 200°C
- Body Material: Carbon Steel, SS304, SS316
- Glass: Temped Glass
- Sealing Gasket: PTFE
- End Connection: Flanged End to ANSI 150, DIN PN16, JIS10K
Additional Details
Additional Information
Length
230 mm
Width
0 mm
Height
143 mm
Weight
0 kg
Specifications
No Specifications Available
Technical specifications have not been added yet.
Specification:
- Size Range: 1/2”~8” (DN15~DN200)
- Pressure Rating: 7 Bar Max
- Temperature Range: Up to 200°C
- Body Material: Carbon Steel, SS304, SS316
- Glass: Temped Glass
- Sealing Gasket: PTFE
- End Connection: Flanged End to ANSI 150, DIN PN16, JIS10K
