OPK Standard Table Type Santo Car (Manual)

SKU:

OPK SC-4-12-A Standard Table Type Santo Car (Manual),Standard Table Type
OPK logo

Brand: OPK

Category: MachineryMaterial HandlingSanto Car

<div class="mcb-wrap-inner mcb-wrap-i...

Contact us for pricing

This product requires a custom quote

In Stock

Table Type

Capacity

Lift Height

Table Area(WxL)

Quantity

Max: 10
Description

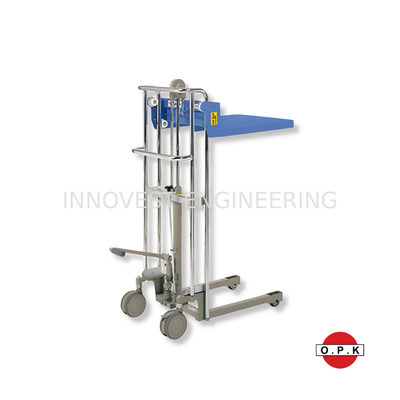

The Santo Car is a specialized equipment designed to perform various lifting and moving tasks, primarily in light duty applications. It consists of a flat table top that is connected to a hydraulic system, which is operated manually. This hydraulic system allows users to adjust the height of the table top, making it suitable for lifting and positioning loads at different levels.
The santo car is equipped with four wheels, which provide mobility and facilitate easy movement across the workspace. These wheels are made of elastomer, a durable, clean and non-marking material that does not leave any traces or marks on the floor. This feature makes the santo car particularly well-suited for use on epoxy flooring or other delicate surfaces where leaving marks is undesirable.
It is widely used in light manufacturing processes of the electronics and semiconductor industries. Its primary applications involve the lifting and positioning of loads, as well as ergonomic work positioning. This makes it highly suitable for tasks such as assembly, packaging, and other activities that necessitate safe, comfortable, and efficient working conditions. By prioritizing the well-being of employees, it not only ensures their safety but also enhances operational efficiency and productivity.

  • Easy to operate using hydraulic pump pedal
  • A simple design that is a perfect fit for any working environment
  • Compact and lightweight with a small turning radius
  • Built-in automatic overload check valve

Loading / Transporting / Lifting
The three basic function which had been improvised to be more intergrated and compact

Equipped with the patented quick lifting mechanism
Optional for 200kg models
santo-car-Manual-description-2

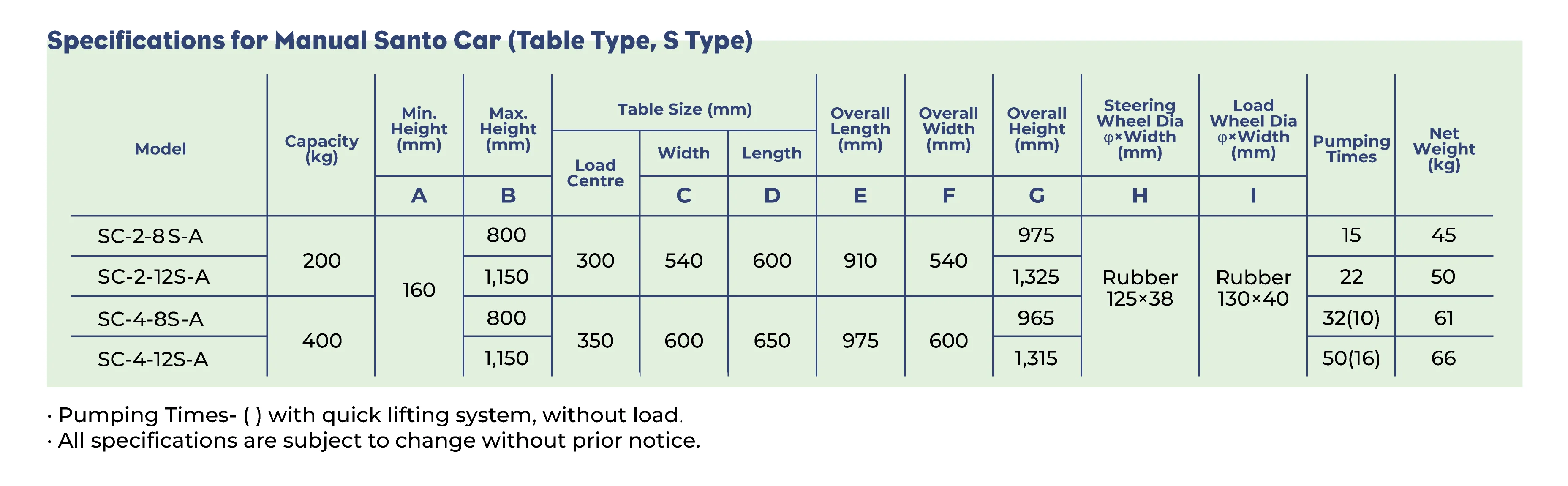

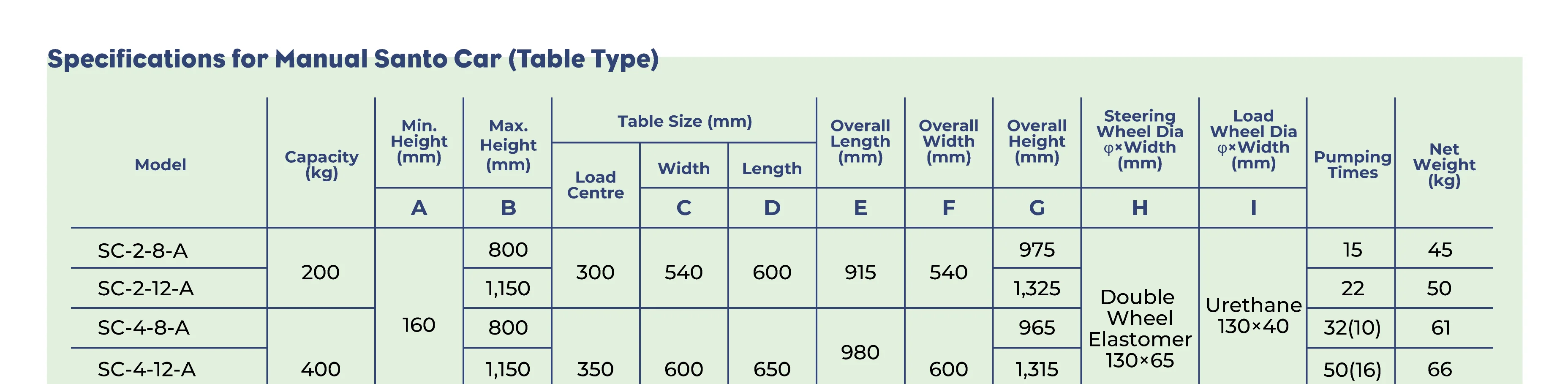

OIC-Product-website-Santo-Car-Series-manual-dimension-3

Additional Details




Additional Information

Length

980 mm

Width

600 mm

Height

1315 mm

Weight

66 kg
