Range: 0–200 mm / 0–8″ | Inch/Metric Dual Scale

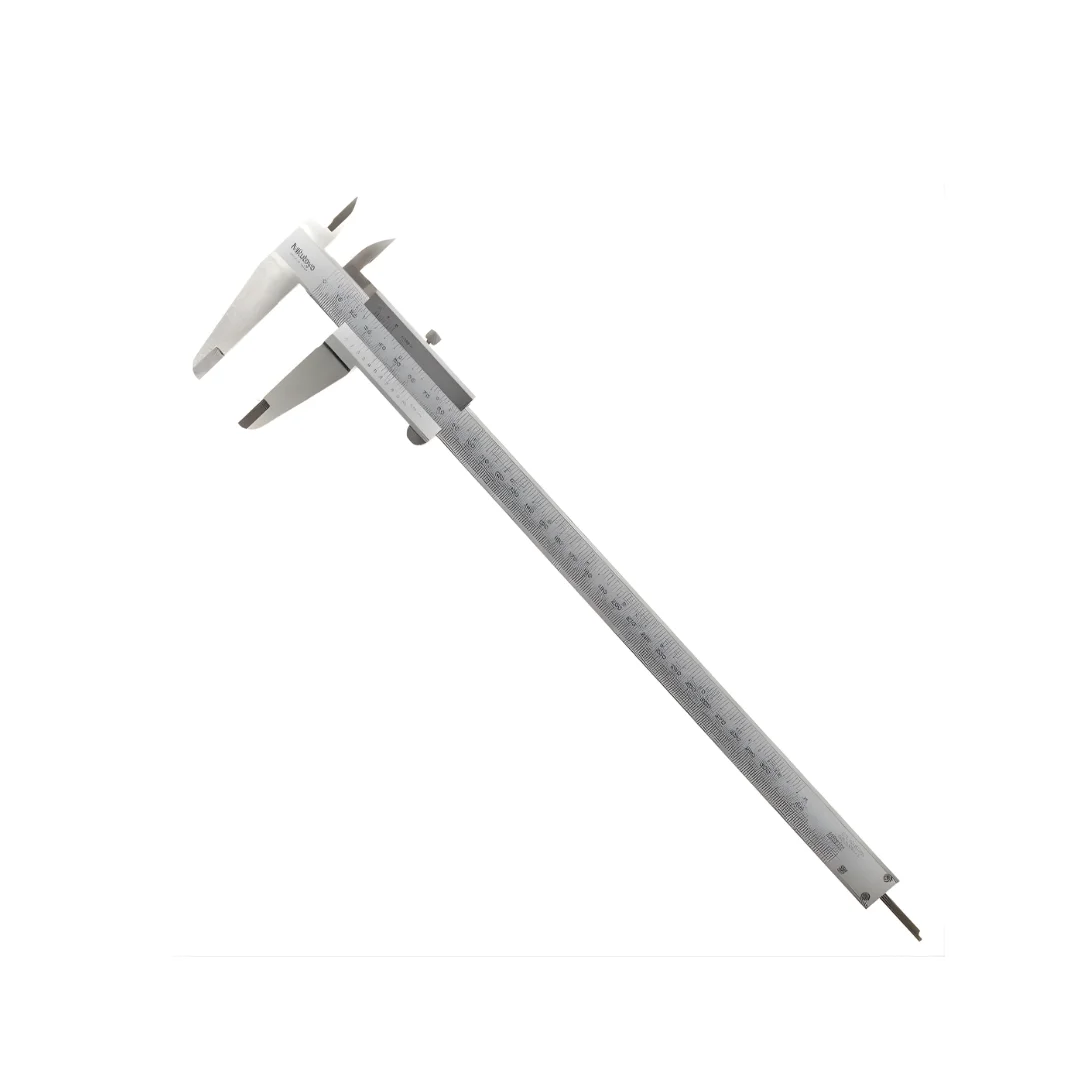

The Mitutoyo 530-114 Vernier Caliper is designed for precise 4-way measurements, including outside diameter (OD), inside diameter (ID), depth, and steps. The caliper features a small vernier face angle of 14° for easy reading and is furnished in satin stainless steel. A lock screw allows holding the sliding jaw position for consistent measurements.
Features
• Inch/Metric dual scale for flexible measurement
• Measures OD, ID, depth, and steps
• Small vernier face angle (14°) for easy reading
• Lock screw for holding sliding jaw position
• Optional carbide-tipped jaw calipers available for increased durability
• Supplied with fitted vinyl holster (except 600 mm models: carton only; 1000 mm: wooden case)
Specifications
• Range: 0–200 mm / 0–8 in
• Graduation: 0.05 mm (lower scale) / 1/128 in (upper scale)
• Type: Inch/Metric Dual Scale
• SPC Output: No
• Accuracy: ±0.05 mm
